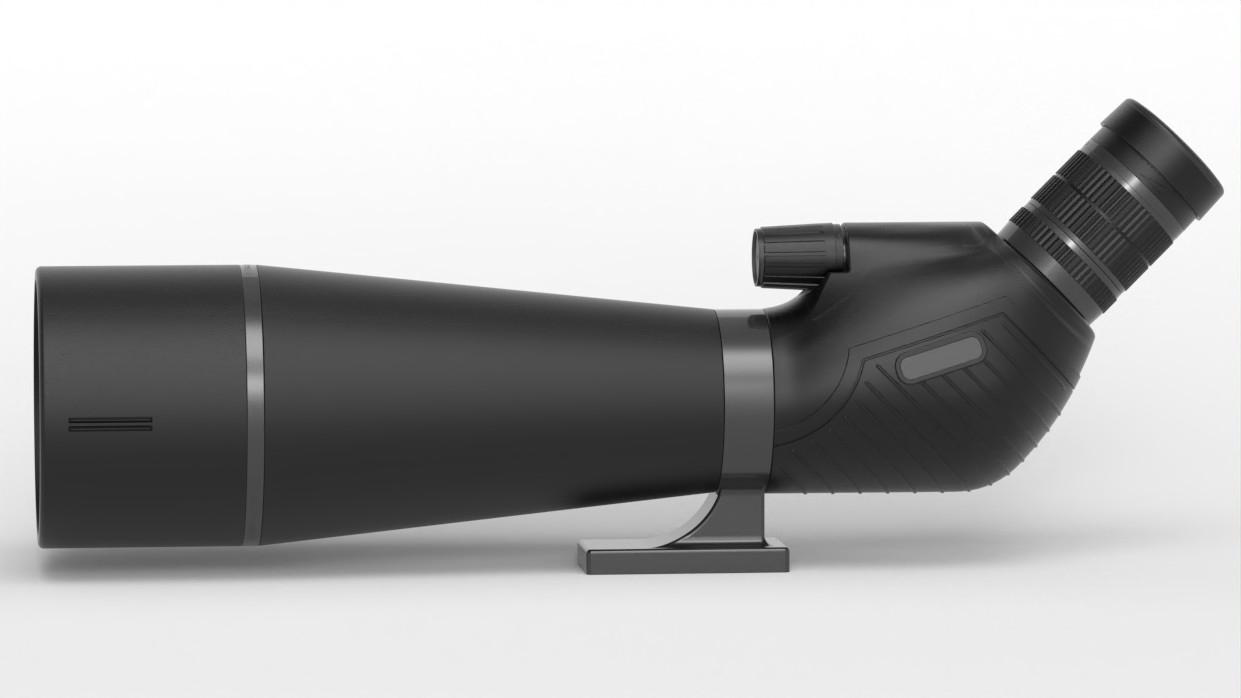

15-45X 20X60 25-75X Spotting Scope KAXS1545501
This Spotting Scopes series is designed for target shooting, range observation, bird watching, wildlife viewing, hunting scouting, archery spotting, and long-distance outdoor observation. With magnification options including 15-45X, 20X60, and 25-75X, plus objective lens diameters from 53mm to 103mm, the series gives B2B buyers flexible product choices for different outdoor optics markets.
Â
Featuring a Porro prism system, ≤6″ center resolution, 14mm eye relief, IPX45 waterproof rating, independent focus, and tripod mount support, these scopes are suitable for both recreational and professional field use.
OVERVIEW
Key Features & Competitive Advantages
- Model options: 15-45X53, 15-45X62, 20X60/83, 25-75X103
- Porro prism system for classic optical structure
- Exit pupil range: approx. 4mm–1.4mm
- 14mm eye relief for comfortable viewing
- Center resolution ≤6 arcseconds
- Minimum focus distance: 10m / 12m / 15m
- IPX45 waterproof rating for outdoor use
- Independent focus system for precise adjustment
- Tripod mount included for stable long-distance observation
- Suitable for shooting ranges, birding, hunting scouting, and outdoor retail markets
Application Scenarios
Target Shooting and Range Observation
The zoom magnification and tripod mount make these scopes suitable for spotting bullet holes, checking targets, and range practice.
Bird Watching and Wildlife Observation
The Porro prism system, ≤6″ center resolution, and objective lens options up to 103mm support detailed viewing of birds and wildlife from a distance.
Hunting Scouting and Field Use
The IPX45 waterproof rating and independent focus design make this series practical for scouting open fields, ridgelines, and distant terrain.
High-Magnification Long-Range Viewing
The 25-75X103 model is suitable for users who need stronger magnification and a larger objective lens for distant observation.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customization Introduction
- Logo Branding Supports private label Spotting Scopes
- Body Color / Finish Can match hunting, birding, or shooting sports markets
- Lens Coating Coating options can be discussed for different product tiers
- Packaging Retail box, neutral box, or customized brand packaging
- Accessories Tripod, carrying case, lens caps, cleaning cloth, and manual
- Manual Language English and multi-language manuals for export markets
- OEM/ODM Support Suitable for customized spotting scope product lines
Parameters
| Product code | KAXS1545501 | KAXS1545601 | KAXS2060802 | KAXS25751001 |
| Magnification | 15–45× | 15-45 | 20×60 | 25-75 |
| Objective Lens Diameter | 53 mm | 62mm | 83mm | 103mm |
| Exit Pupil Diameter | 4 mm – 1.4 mm | φ4mm—1.4 | φ4mm—1.4 | φ4mm—1.4 |
| Eye Relief | 14 mm | 14mm | 14mm | 14mm |
| Field of View | 3.2° – 1.3° | 3。2°-1.3° | 3°-1.1° | 2.5°-0.8° |
| Center Resolution | ≤ 6 arcseconds (6″) | ≤6″ | ≤6″ | ≤6″ |
| Minimum Focus Distance | 10 m | 10m | 12m | 15m |
| Waterproof Rating | IPX45 | IPX45 | IPX45 | IPX45 |
| Prism System | Porro Prism | Porro Prism | Porro Prism | Porro Prism |
| Focus System | Independent Focus | Independent Focus | Independent Focus | Independent Focus |
| Tripod Mount | Yes | Yes | Yes | Yes |
| Net Weight | 920 g | 1260G |
