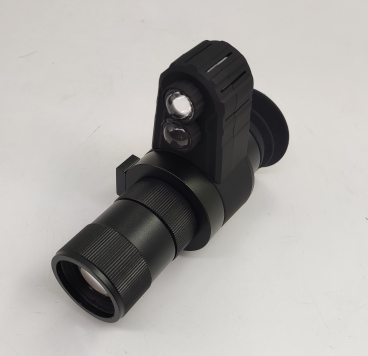

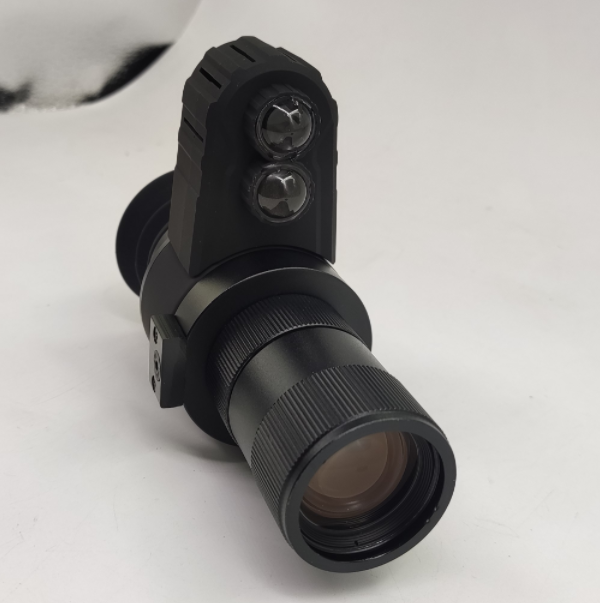

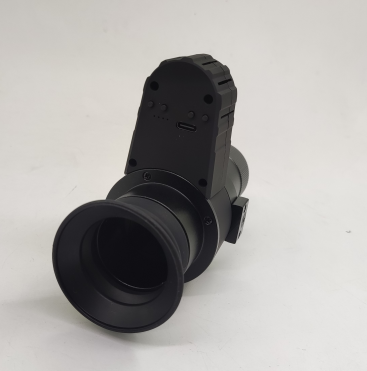

Night Vision Rifle Scope for Precision Targeting in Total Darkness CYF-F+
This night vision rifle scope is built for professional nighttime hunting, security surveillance, and tactical operations in full darkness. With a 4–15x magnification range and a detection range up to 320 meters, it’s ideal for precision shooting in low-light and no-light environments.
OVERVIEW
Key Advantages and Features
- Full night vision capability up to 320 meters (850nm infrared)
- Wide magnification range: 4× to 15× for flexible targeting
- PMC green-coated optics and BAK4 roof prism for sharp, high-contrast imaging
- SONY307 CMOS sensor with Taiwan Master chipset for real-time precision
- Ultra-low latency video sync (<0.01 sec) for moving targets
- Supports live-use charging – field-ready with continuous power
- AVI and CVBS output for analog recording or external screen projection
- Compact OLED display with 320×320 resolution, perfect for quick aiming
Application Scenarios
- Night hunting scopes for predators and hogs
- Tactical night vision scopes for law enforcement
- Low-light surveillance and perimeter monitoring
- Rifle scopes with IR for night target shooting
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
- IR wavelength: Optional 850nm or 940nm for stealth or range optimization
- Housing color / branding: OEM laser-engraved logo available
- Battery module: Custom power pack support on request
- Magnification tuning: Scalable optical modules possible for bulk orders
Parameters
| Product Code | CYF-F+ |
| OLED Display Size | 1.54 inch |
| Display Resolution | 320 × 320 |
| Main Chipset | Taiwan MASTER chipset |
| Sensor Type | CMOS SONY307 |
| Infrared Wavelength | 850 / 940 nm (default: 850) |
| Video Sync Delay | < 0.01 sec |
| Night Vision Range (Full Darkness) | Effective up to 320 m |
| Battery Specification | 852535 × 2 |
| Battery Capacity | 1700 mAh |
| Battery Life (IR Off) | 4–5 hours |
| Battery Life (IR On) | Approx. 1.5 hours |
| Charging While Operating | Supported |
| Video Format | AVI, CVBS |
| Storage Card Support | Not supported |
| Field of View | 6° |
| Magnification Range | 4–15x |
| Lens Coating | PMC Green Coating |
| Objective Lens Diameter | 30 mm |
| Focusing Method | Objective Adjustment |
| Prism Material | BAK4 |
| Prism System | Roof Prism System |
Ready to Take Aim?
If you’re seeking a reliable, high-performance night vision rifle scope for professional or tactical use, contact us today for wholesale pricing and customization options.
Let us help you equip your customers with the visibility they need – when visibility matters most.
