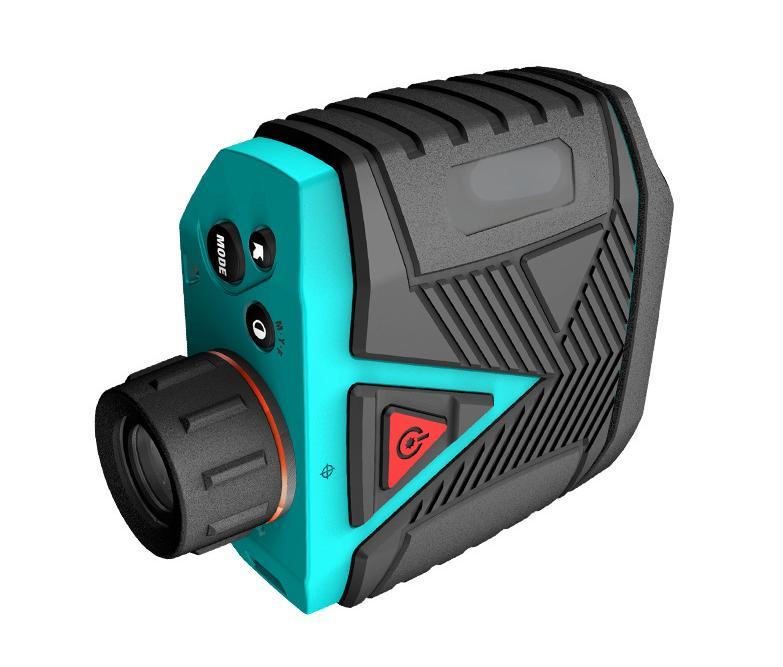

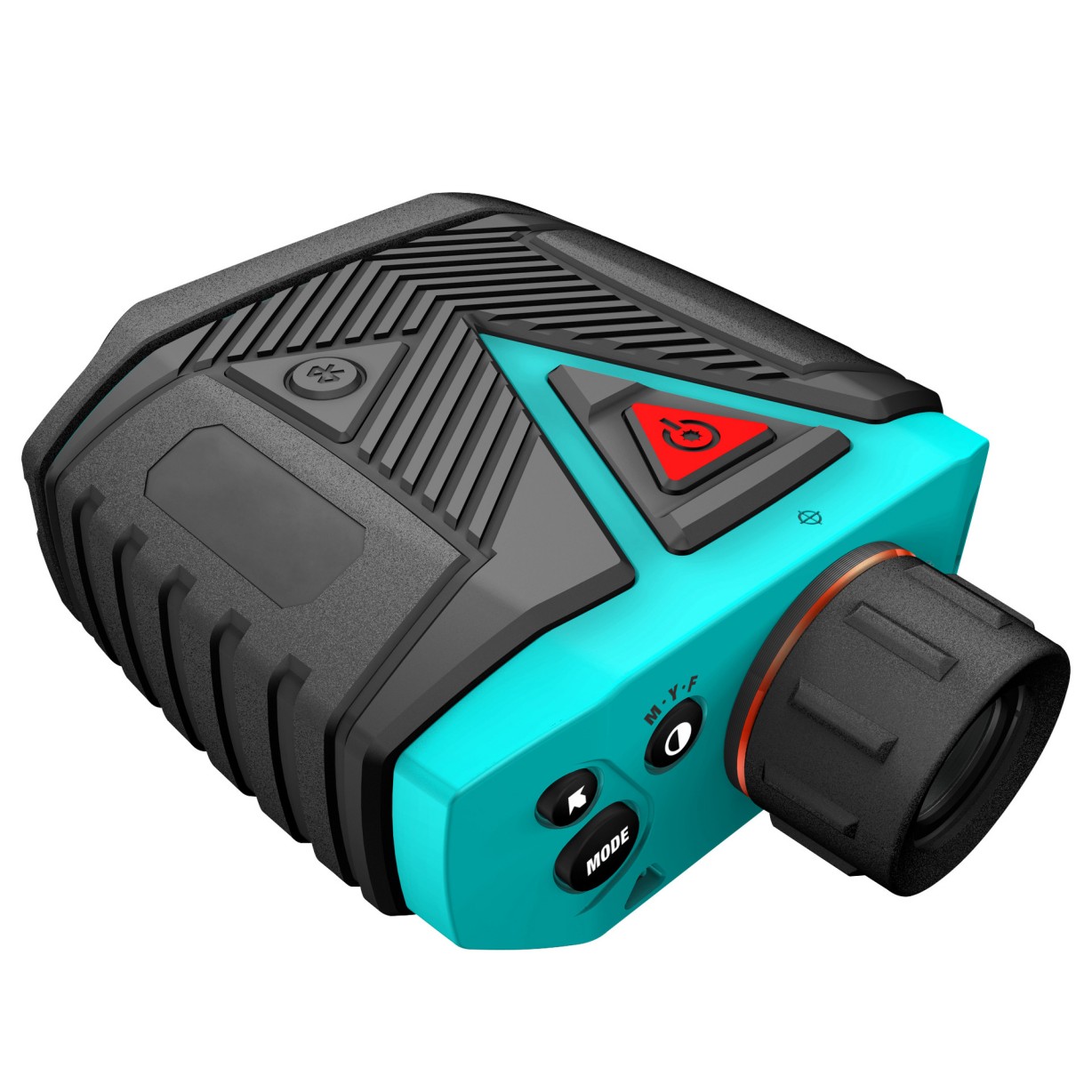

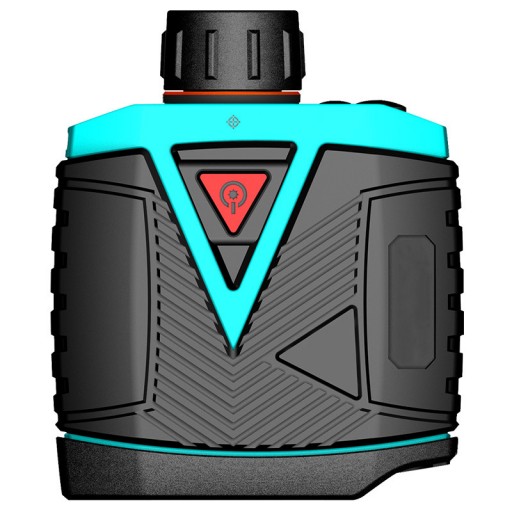

Pro-Grade 2000m Laser Rangefinder MACL520
This high-end 2000m Rangefinder is engineered for precision-intensive industries and demanding outdoor scenarios where distance, angle, height, and real-time data transfer are essential. With an 8x magnification, ±0.3 m accuracy, built-in gyroscope, and black/red dual-mode LCD, it is ideal for infrastructure surveyors, tactical teams, and forestry professionals requiring rugged performance and reliable output across long ranges.
OVERVIEW
Key Advantages and Features
- Full-Scale Precision Measurement
Supports multiple modes including:
- Two-point distance & height
- Inclination, angle, and horizontal distance
- Flagpole lock (near) + rain/fog (far)
- Continuous scan measurement
All processed with ±0.3 m + 0.001×D distance accuracy and ±0.5° inclination precision.
- Dual-Color Display for All Lighting
Equipped with a Black/Red dual-color R-PD LCD, users can toggle between modes based on ambient brightness—ideal for day/night missions, dusk scouting, or low-light construction.
- Integrated Gyroscope and ±8D Diopter
With ±1° gyroscopic correction and a ±8 diopter range, this device ensures stable, clear targeting even under user movement or high-contrast scenes.
- Rugged and Reliable in Harsh Environments
- IP65-rated protection: resists water, dust, and debris
- -10°C to +60°C working temperature
- Durable housing with ergonomic grip (only 593 g with battery)
- Data-Ready and Rechargeable
- Type-C charging interface
- 18650 rechargeable lithium battery
- USB data transmission support for exporting measurements into digital systems or inspection reports
- Ideal for field digital documentation or fleet integration
Application Scenarios
- In engineering surveys, its arbitrary two-point distance and height measurement functions support accurate layout planning, elevation calculation, and terrain profiling.
- In tactical or hunting operations, features like flagpole locking (near priority) and rain/fog mode (far priority) ensure accuracy regardless of visual obstruction or target layering.
- With USB data transmission and tripod screw support, it also excels in field documentation, stationary environmental monitoring, and long-range wildlife observation.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
- OEM branding on housing and LCD boot screen
- Custom firmware or interface icons
- Packaging personalization for engineering, military, or outdoor gear sectors
- MOQ programs available for survey gear suppliers, optics brands, and tactical technology resellers.
Parameters
| Product Code | MACL520 |
| Range | 2000 m |
| Measurement Units | Meter (m), Yard (Y), Foot (F) |
| Distance Accuracy | ±(0.3 m + 0.001 × Dm) |
| Inclination Accuracy | ±0.5° |
| Gyroscope Accuracy | ±1° |
| Field of View | 6° |
| Magnification | 8x |
| Objective Lens Diameter | 23 mm |
| Eyepiece Diameter | 31 mm |
| Exit Pupil Diameter | 3.8 mm |
| Diopter Adjustment | ±8D |
| Operating Temperature | -10°C ~ 60°C |
| Display Type | Black/Red Dual Color R-PD LCD |
| Power Source | 18650 Lithium Battery |
| Tripod Screw Hole | Yes |
| Flagpole Lock (Near Priority) | Yes |
| Rain/Fog Mode (Far Priority) | Yes |
| Two-Point Height Measurement | Yes |
| Arbitrary Two-Point Distance Measurement | Yes |
| Distance Measurement with Height | Yes |
| Horizontal Distance Measurement | Yes |
| Continuous Distance Measurement | Yes |
| Angle Measurement | Yes |
| LCD Backlight | Yes |
| Charging Port | Type-C |
| Data Transmission | USB Data Transmission |
| Protection Rating | IP65 |
| Dimensions | 143 × 125 × 55 mm |
| Weight (with battery) | 593 g |
