Key Advantages and Features

• High-Sensitivity Thermal Sensor (≤20mK NETD)
• Ensures strong target-to-background separation in fog, humidity, or low-contrast conditions.
• 256×192 Resolution with 12μm Pixel Pitch, Balanced performance for clarity, power efficiency, and cost control.
• Smooth 60Hz Refresh Rate, Provides fluid image movement for tracking animals and moving targets.
• Fast 13mm F1.0 Lens, Improves thermal energy intake and image brightness in low-light environments.
• Detection Range up to 700 m, Suitable for most hunting and rural security scenarios.
• True 1× Base Magnification, ideal for close-range engagements and wide situational awareness.
• Ultra-Short Minimum Focus Distance – 0.5 m, Excellent for pest control and near-field thermal detection.
• 1.6-inch OLED Display (360×320), Clear, comfortable viewing with low power consumption.
• Touch Screen Control: Fast and intuitive operation, even under field conditions.
• Multiple Thermal Palettes: Black Hot, White Hot, Red Hot, and Fusion modes for different observation needs.
• Advanced FFC Calibration Modes: Auto, manual, and external correction ensure image stability across temperature changes.
• On-Board Video & Snapshot Recording, Built-in 32 GB eMMC storage for documentation and review.
• Recoil-Activated Recording, Automatically captures critical moments during shooting.
• 3 Zeroing Profiles, Supports multiple rifles or calibers without re-zeroing.
• High Recoil Resistance – 1200g / 0.4 ms
• Compatible with common hunting calibers.
• IP67 Waterproof Rating: Reliable performance in rain, dust, and harsh outdoor environments.
• Flexible Power Supply: Supports CR123 or 16340 batteries, plus Type-C external power input.
• Wide Operating Temperature Range: Stable operation from −20°C to +50°C, suitable for diverse climates.

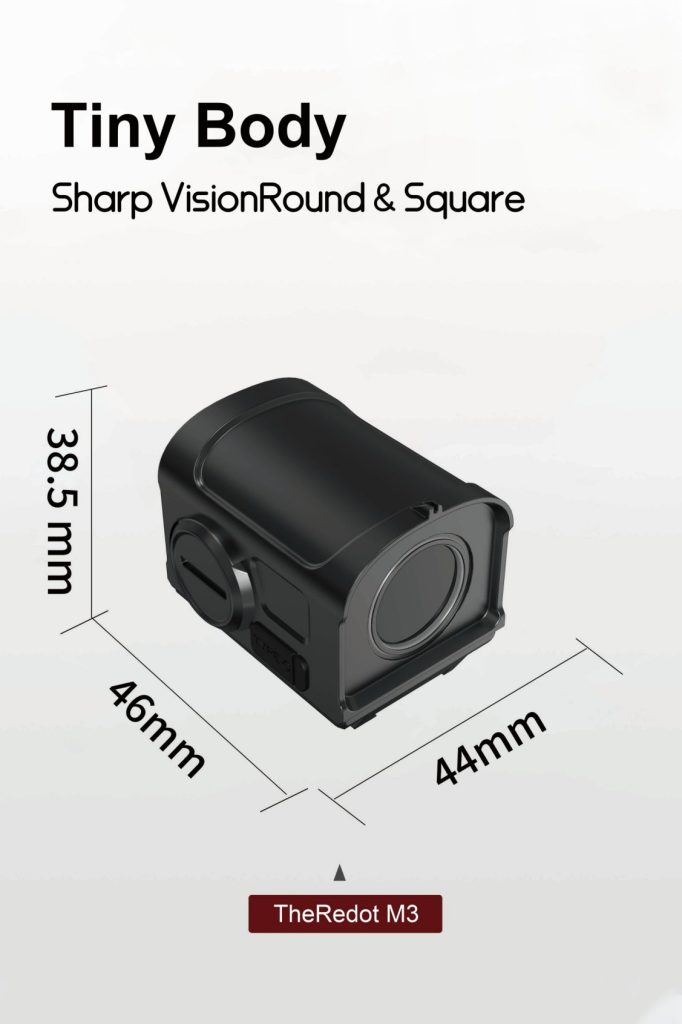

• Compact & Lightweight Design: Only 44 × 46 × 38.5 mm, ideal for minimalist rifle setups.
• Multiple color palettes and smooth 60Hz refresh rate support therm

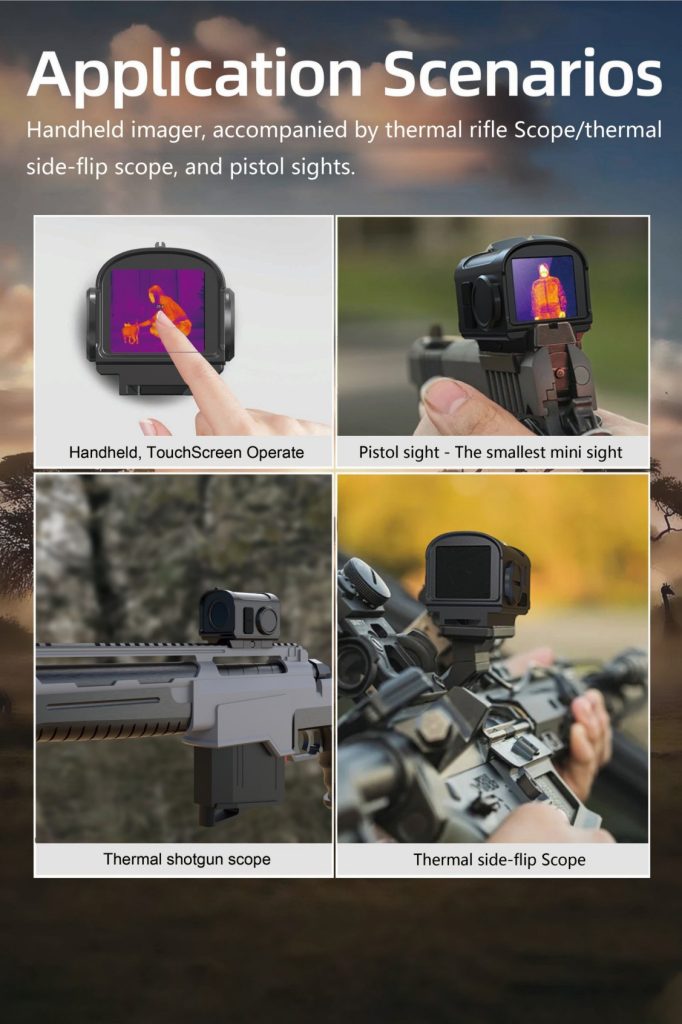

Application Scenarios

Thermal Imaging Scope for Night Hunting

Optimized for night hunting at short to medium distances, especially for wild boar, predators, and small game in wooded or semi-open terrain.

Thermal Scope for Pest Control & Farm Protection

The 0.5 m minimum focusing distance and recoil-activated recording make it effective as a thermal scope for pest control in farms, barns, and rural properties.

Close-Range Thermal Rifle Scope for Dense Environments

Ideal for dense forest, brush, or night patrol scenarios where wide field of view and fast response matter more than long-range magnification.

Thermal Imaging Scope for Wildlife Observation

Multiple color palettes and smooth 60Hz refresh rate support thermal wildlife observation without disturbing animals.

Lightweight Thermal Scope for Mobile Hunters

At only 115 g (without battery), it is well suited for mobile hunters, lightweight carbines, and compact rifle platforms.
