OVERVIEW

Key Advantages and Features

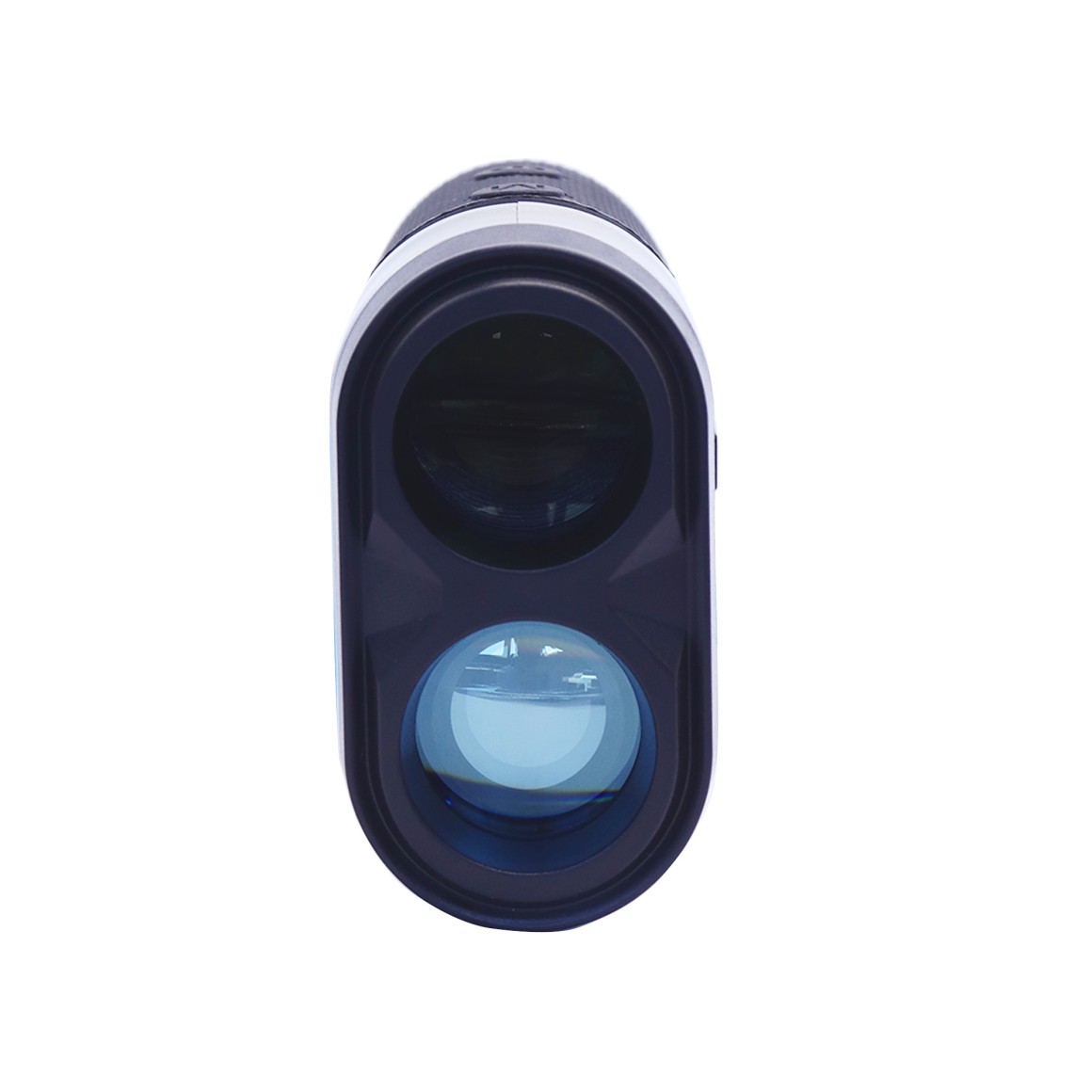

• Optical Performance: 6X magnification with 23 mm objective lens, 6° field of view, and 17 mm eyepiece effective diameter
• Fast & Accurate: Measuring time 0.3–0.8 s, accuracy ±1 yard (<100 yd), ±2 yards (100–500 yd), 0.5% (>500 yd)
• Slope & Tilt Compensation: ±85° tilt range, 1° resolution, slope mode for improved accuracy
• Durable & Reliable: IEC 60825 Class 1 laser, operating temperature -10°C to +50°C, ABS housing

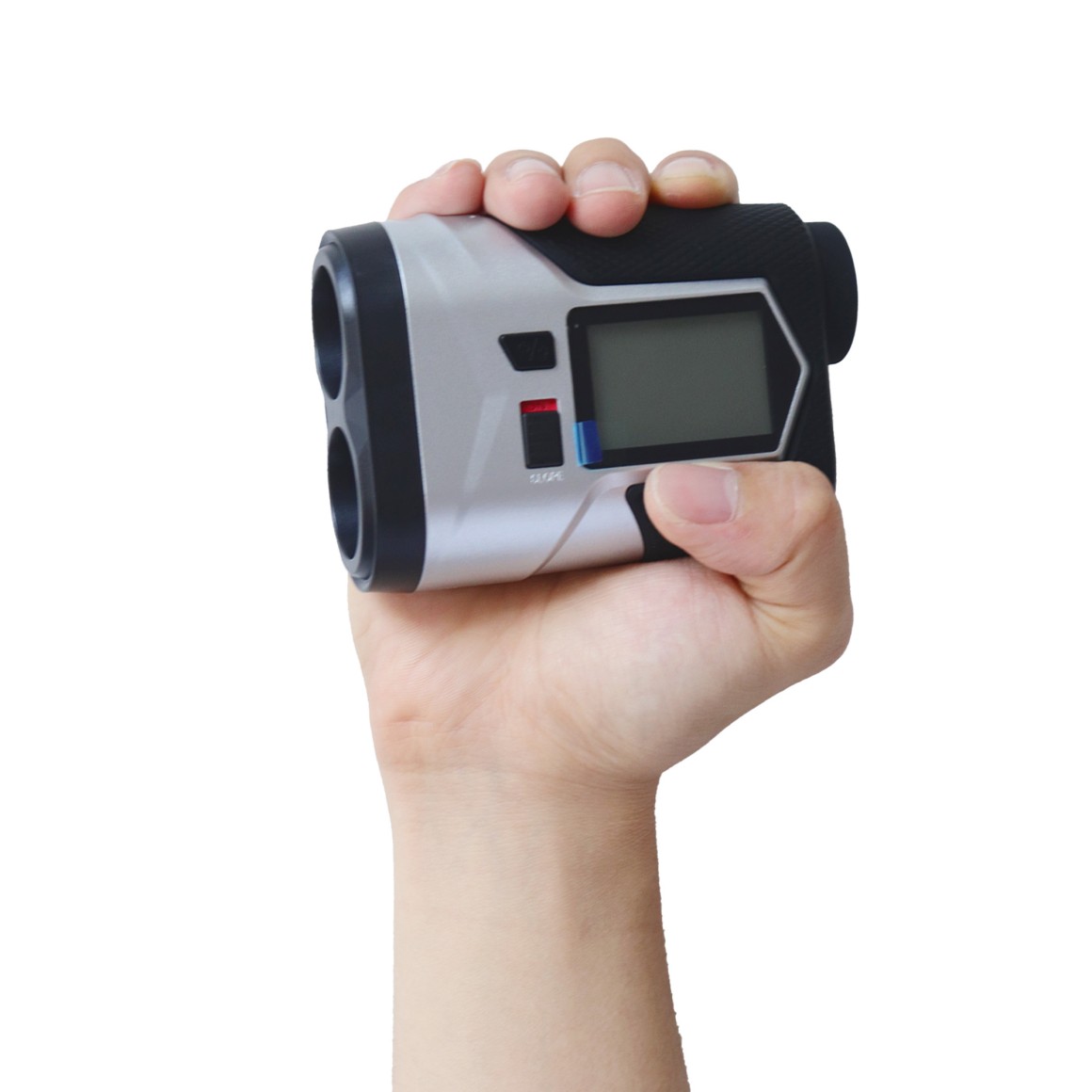

• Compact & Portable: Dimensions 40×73×106 mm, lightweight 190 g, top button silicone for comfort
• User-Friendly: Dial switch with glossy + silk-screen finish, easy to operate in field conditions

Application Scenarios

• Hunting & Wildlife Observation: Accurate ranging from 5 yards to 1200 yards with slope mode for precise shot planning.
• Golf & Sports: Fast measurement (0.3–0.8 s) with slope compensation ensures accurate distance calculation on course or in training.
• Outdoor & Surveying Applications: Lightweight 190 g device with tilt and slope capabilities, LCD display, and compact dimensions for easy transport.

Customizable Features

• Display: LCD and external LCD with customizable readouts
• Housing: ABS with glossy paint and silk-screen finish; optional branding or color customization for bulk orders
• Power: Built-in lithium battery, supporting 5,000 measurements per charge; optional extended-life battery available

Parameters

Model Number	LOS650/LOS800/LOS1200
Magnification	6X ±5%
Objective Lens Diameter	23mm ±5%
Field of View	6° ±5%
Eyepiece Effective Diameter	17mm ±5%
Maximum Measuring Range	1200 yards (high-reflective target)
Minimum Measuring Distance	5 yards
Accuracy	+/- 1 <100YD, +/- 2 100–500YD, 0.5% >500YD
Minimum Distance Resolution	0.1 yard
Measuring Time	0.3–0.8 seconds
Tilt Range	±85°
Tilt Resolution	1°
Slope Mode	YES
Display Type	LCD and external LCD
Battery Type	Built-in lithium battery
Battery Life	5,000 uses
Standby Current	70 mA
Peak Current	110 mA
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Laser Safety Class	IEC 60825 CLASS 1
External Display	YES
Weight	190 g
Product Dimensions	40 × 73 × 106 mm
Top Button Material	Silicone
Housing Material	ABS with glossy paint and silk-screen finish
Dial Switch	Glossy painted + silk-screen finish
