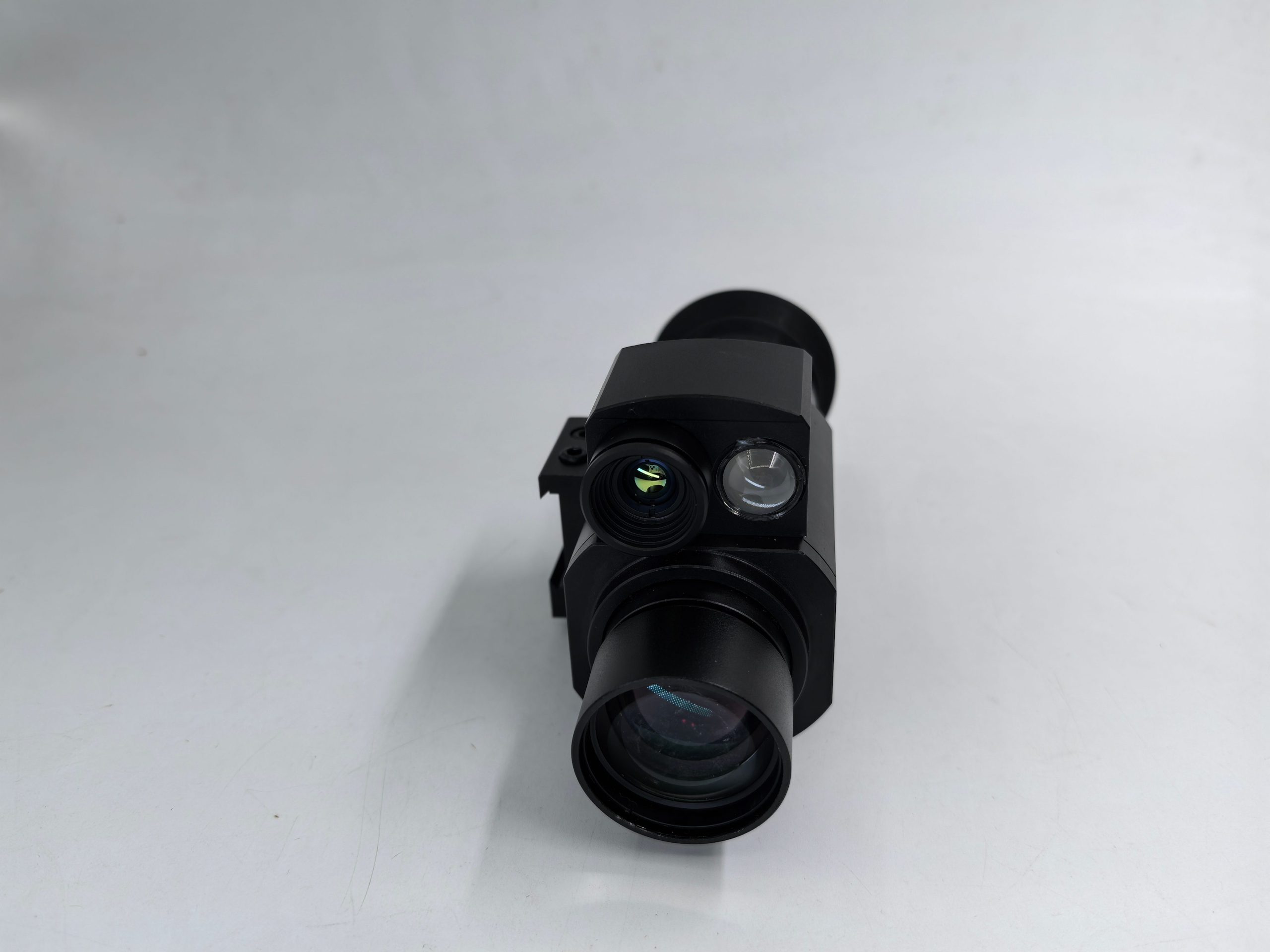

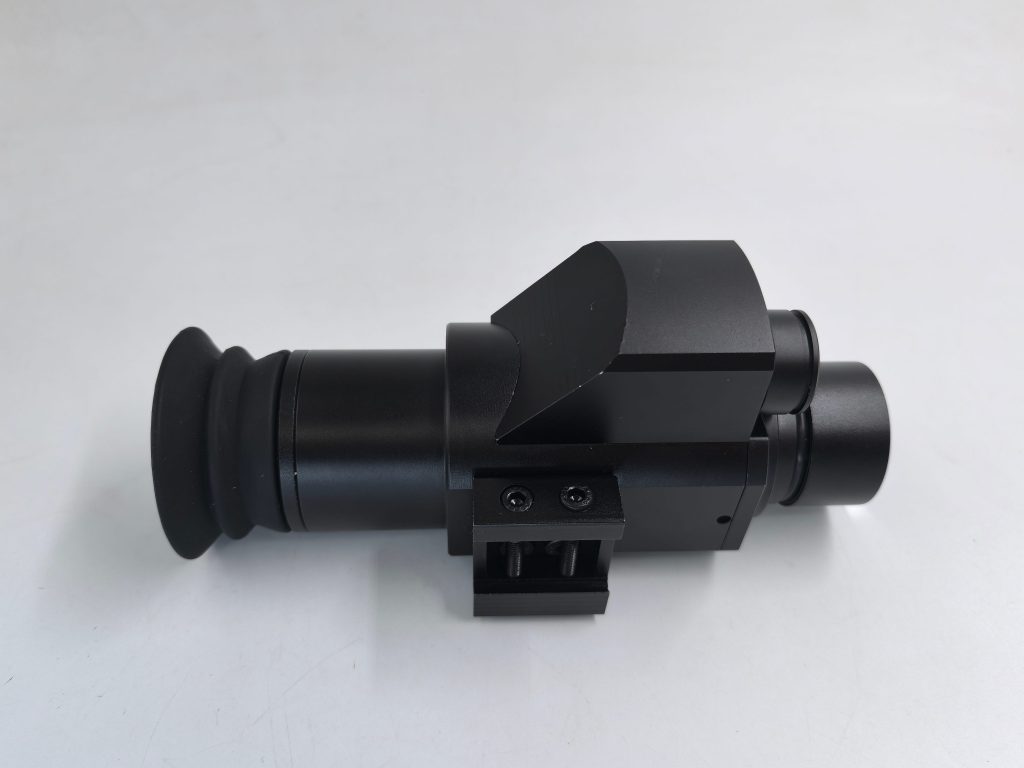

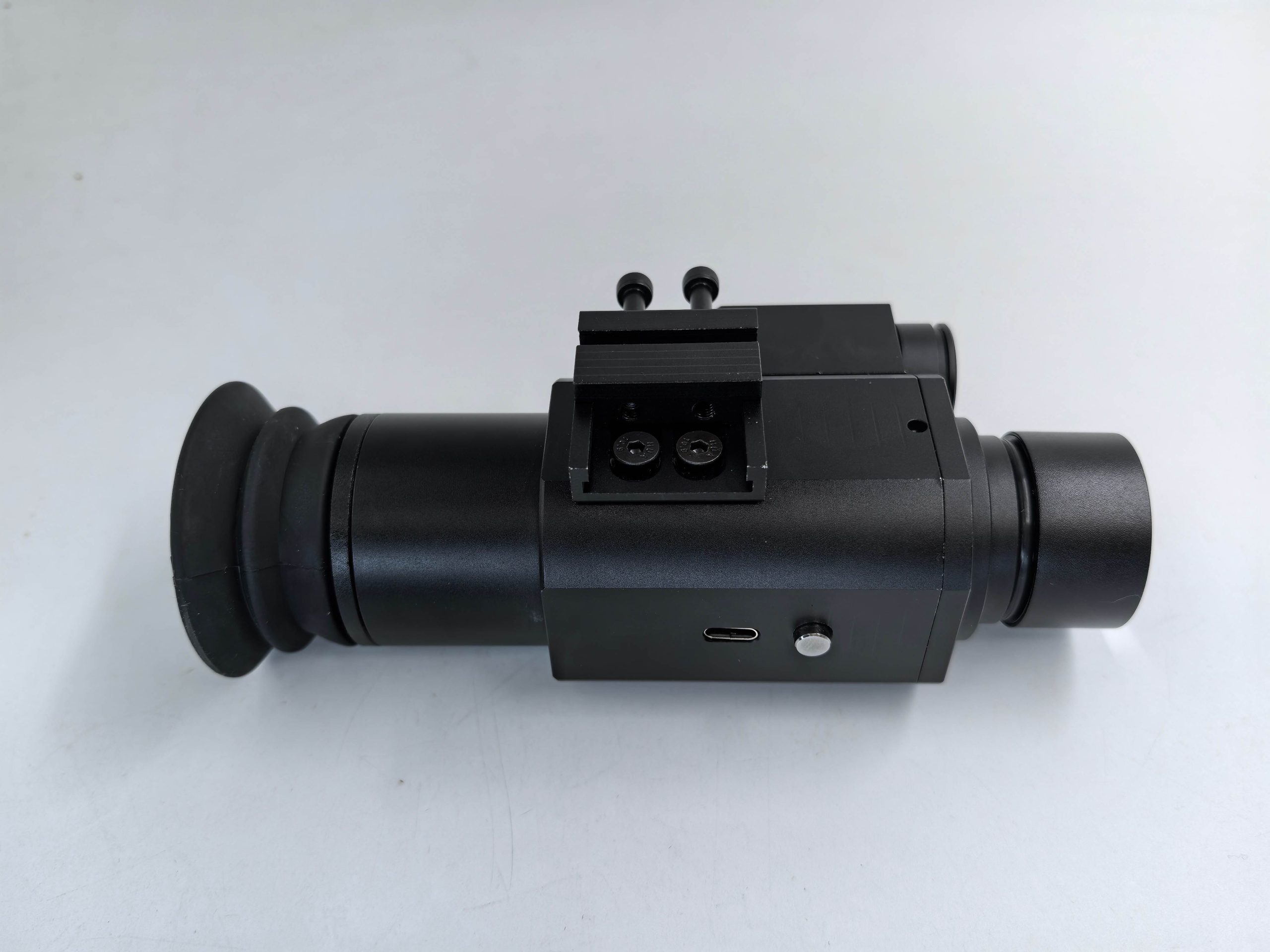

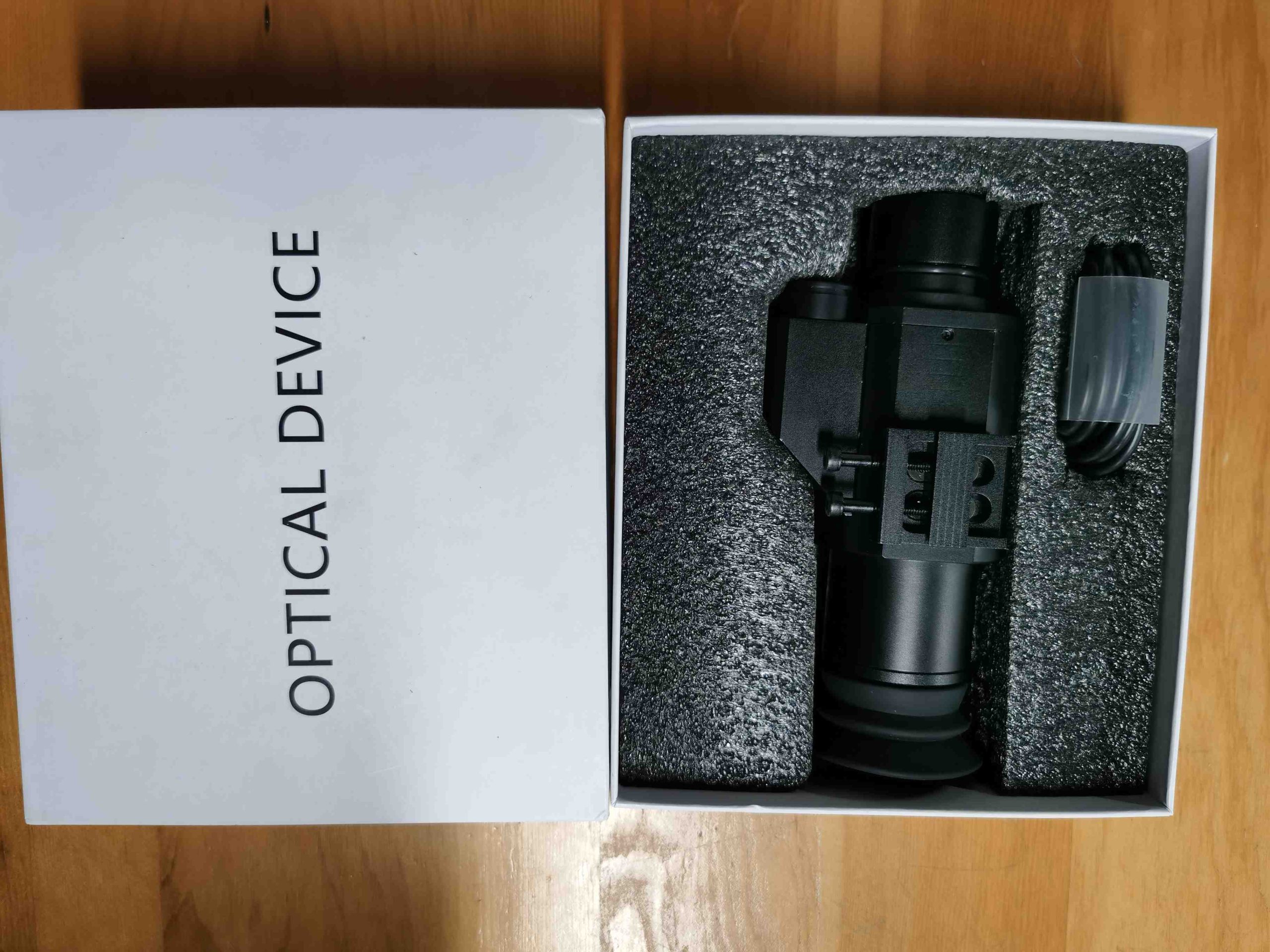

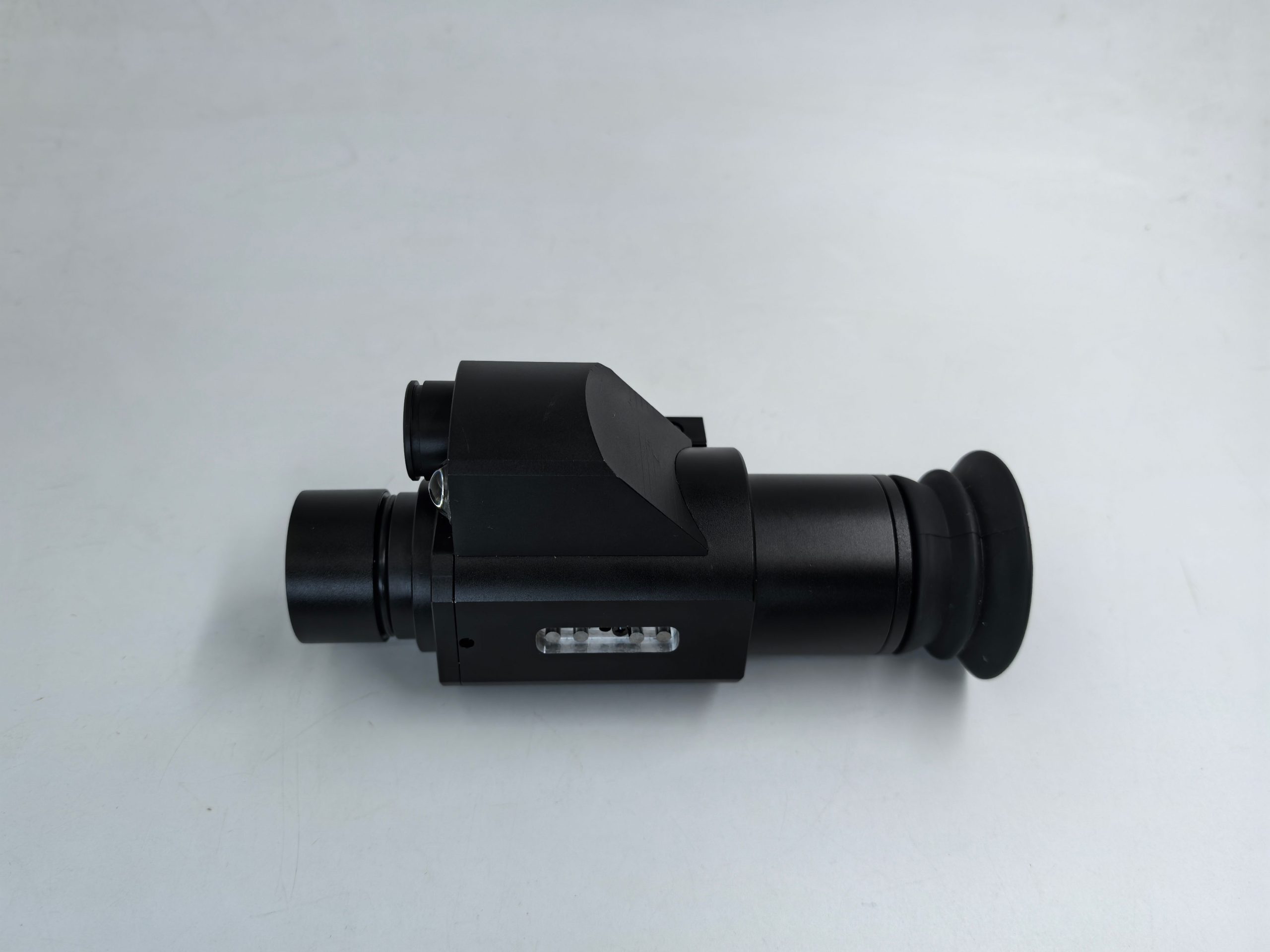

CYFS01 7x Thermal Night Vision Monocular CYFS01
The CYFS01 7x thermal night vision monocular delivers precise thermal detection and high-resolution OLED imaging in one compact device—ideal for wildlife observation, night hunting, security patrols, and outdoor exploration in complete darkness.
Designed for hunters, tactical teams, and outdoor gear brands, the CYFS01 offers dual-mode visibility (thermal and infrared night vision) with no-delay imaging, making it a reliable tool for operations in pitch-black environments or dense foliage.
OVERVIEW
Product Advantages & Key Features:
- Taiwan Master Chip + Sony 307 CMOS sensor ensures fast thermal response and crisp imaging
- 256×192 @ 12μm thermal resolution, NETD ≤ 25mk: detect adult humans up to 500m, elephants up to 900m
- 1.54-inch OLED display (320×320) with ultra-low sync delay < 0.0001 sec
- 7x magnification with 25° wide FOV, FMC broadband green coated optics
- Infrared 850nm night vision effective up to 320 yards
- Dual-battery design with up to 5-hour runtime (thermal mode) and 1.5 hours in IR mode
- Supports charging while operating – ideal for continuous surveillance
- Compact and rugged, ready for motorcycle trips, remote camping, and tactical field ops
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customization & OEM Flexibility:
- Supports private label branding and accessory bundling
- Custom infrared wavelength or lens adjustments available upon request
- Built for bulk procurement and strategic partnerships with low MOQ flexibility
Parameters
| Product Code | CYFS01 |
| OLED Display | 1.54 inch |
| Display Resolution | 320 × 320 |
| Main Chip | Taiwan Master Main Chip |
| Image Sensor | CMOS Sony 307 |
| Infrared Type | Default 850nm |
| Video Sync Delay | < 0.0001 sec |
| Night Vision Viewing Distance (Full Darkness) | Effective up to 320 yd |
| Battery Specification | 852535 × 2 |
| Battery Capacity | 1700mAh |
| Battery Life (Night Vision) | 1.5 hours |
| Battery Life (Thermal Imaging) | 4–5 hours |
| Charging Support | Supports charging while in use |
| Storage Card Support | Not supported |
| Magnification | 7x |
| Lens Coating | FMC Broadband Green Coating |
| Objective Lens | 25mm (including edge) |
| Field of View | 25° |
| Adjustment Method | Focal Adjustment |
| Frame Rate | 60 Hz |
| Thermal Sensitivity (NETD) | 25 mk |
| Thermal Core Resolution | 256 × 192 @ 12μm |
| Thermal Detection Range (Elephant) | 900m (Elephant) |
| Thermal Detection Range (Adult) | 500m (Adult) |
| Processor | Taiwan Master Main Chip |
| Thermal Imaging Field of View | 35° |
| Applications | Outdoor, Hunting, Travel, Camping, Hotel, Motorcycle, Night Vision |
Let’s Collaborate
Upgrade your outdoor gear catalog with thermal precision.
Reach out for OEM pricing, custom branding, or to request a demo unit of the CYFS01 thermal night vision monocular.
