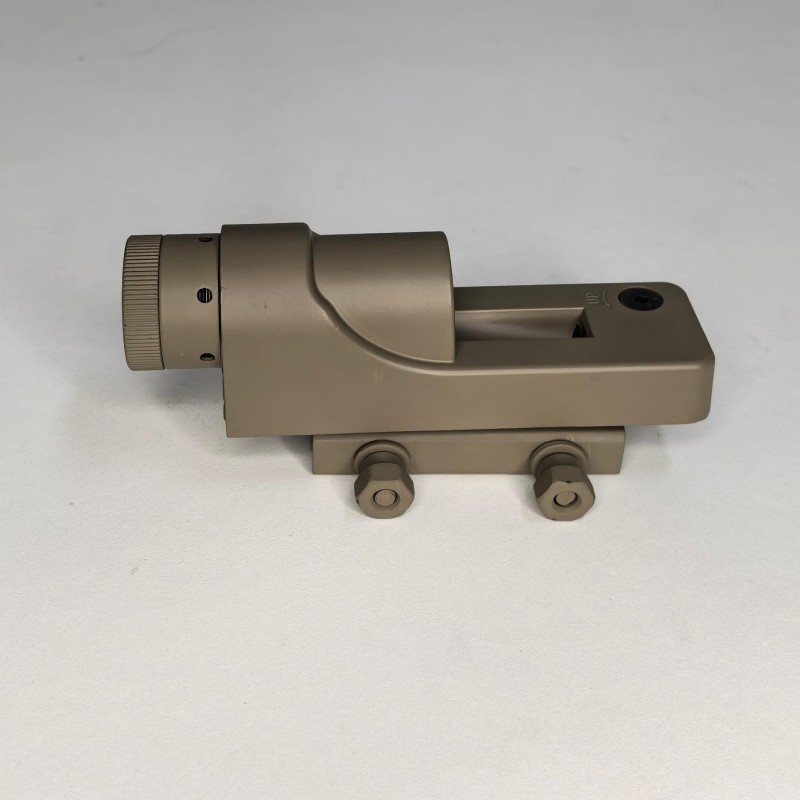

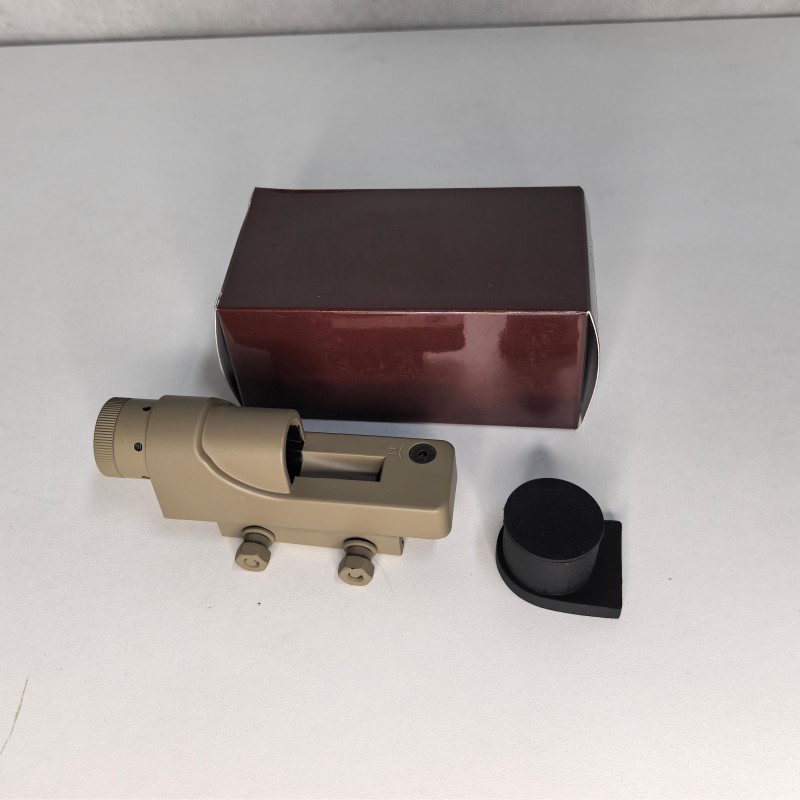

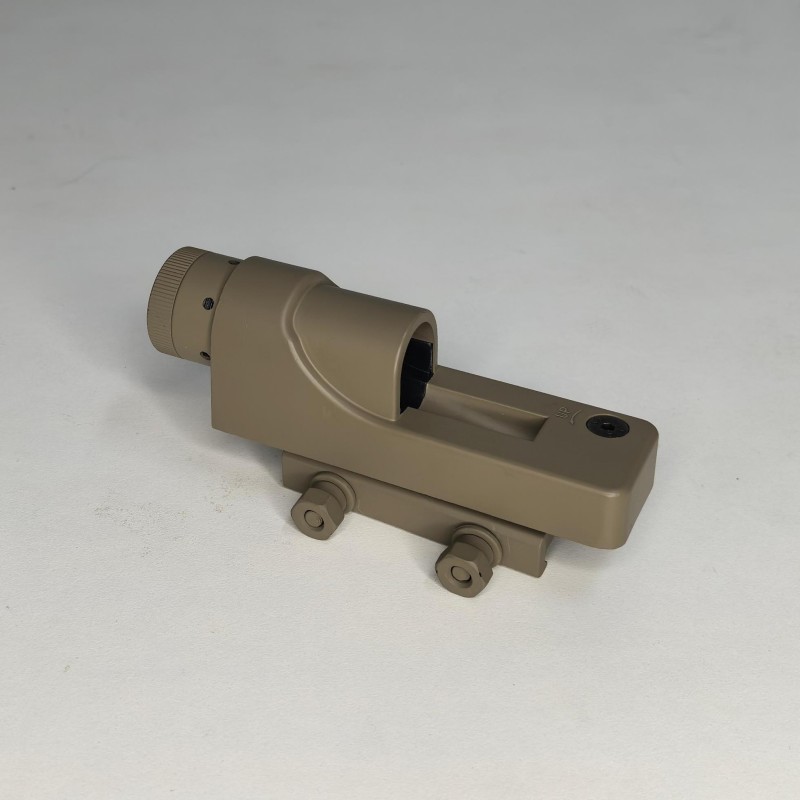

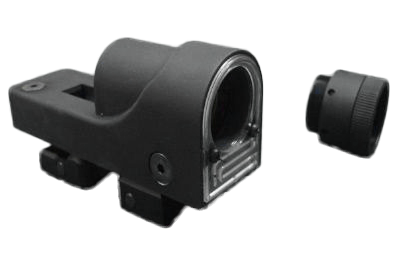

1x 4 MOA Triangle Reticle Reflex Red Dot Sight ZHX125OR
This 1x Reflex Red Dot Sight with a 4 MOA triangle reticle delivers fast target acquisition and precise aiming for short-range tactical, hunting, and dynamic shooting applications. Designed with stepless brightness control and parallax-free optics, it ensures crisp aiming under all lighting conditions.
OVERVIEW
Key Advantages and Features
- Triangle Reticle for Intuitive Aiming – The 4 MOA triangle reticle improves visual acquisition over traditional dots, ideal for center-mass targeting.
- 1x True Magnification with Parallax-Free Performance – Enables both-eyes-open shooting and rapid engagement with minimal visual distortion.
- Light-Controlled Brightness with Stepless Adjustment – Automatically adapts to lighting environments, while allowing manual override via screwdriver-adjustable turret.
- 6063 Aluminum Housing – Lightweight & Durable, constructed for rugged field performance with 500G shock resistance and anti-reflective multi-layer lens coating.
- Compact & Tactical Mounting – Integrated 20mm Weaver rail mount ensures easy installation and solid zero retention.
Technical Specifications
- Magnification: 1x
- Objective Lens Diameter: 25 mm
- Reticle Type: Triangle, 4 MOA, red
- Brightness: Light-sensing auto adjustment, stepless manual control
- Click Value: 0.5 MOA
- Material: 6063 Aluminum
- Coating: Anti-reflective, red lens coating
- Shock Resistance: 500G
- Battery Type: 2 × AG13
- Battery Life: 400 hours
- Parallax: Free
- Mount Type: Integrated 20mm Weaver
- Length: 135 mm
- Weight: 235 g
- Color Options: Matte Black / Desert Tan
Application Scenarios
Perfect for AR rifles, shotguns, and tactical carbines, this sight is built for urban combat, home defense, and fast-action competitions where speed and simplicity are essential.
Customizable for Your Brand
Logo and firmware customization available
OEM/ODM support with low MOQ
Custom language interface and startup screens
Customizable Features
- Optional finish: Matte Black or Desert Tan
- OEM triangle reticle size/logo available
- Custom packaging and mounting interfaces upon request
Parameters
| Product Code | ZHX125OR |
| Magnification | 1x |
| Objective Lens Diameter | 25 mm |
| Reticle Type | Triangle |
| Material | 6063 Aluminum |
| Reticle Size | 4 MOA |
| Brightness Control | Stepless adjustment |
| Reticle Color | Red |
| Brightness Level | Light-controlled brightness |
| Adjustment Sound | Silent screwdriver adjustment |
| Click Value | 0.5 MOA |
| Shock Resistance | 500G |
| Coating | Anti-reflective multi-layer coating / Red coating |
| Field of View | 32′ @ 100 yards |
| Parallax | Parallax Free |
| Battery Type | 2 × AG13 |
| Battery Life | 400 hours |
| Mount Type | Integrated 20mm Weaver rail mount |
| Surface Color | Matte Black / Desert Tan |
| Length | 135 mm |
| Weight | 235 g |
